Concrete Honeycombing on a Column: How We Caught the Cover-Up and Did the Sika Repair Properly

Hi, Daniel here!

Quick follow-up to the night-pour post. The pour itself went well, the cylinders came back at 5,700 PSI at 28 days, all great on paper. But on one column we hit the other classic concrete problem: honeycombing.

This is the post where I tell you what it looks like, why it happens, how the crew tried to quietly cover it up, and how a proper Sika-supervised repair is supposed to go.

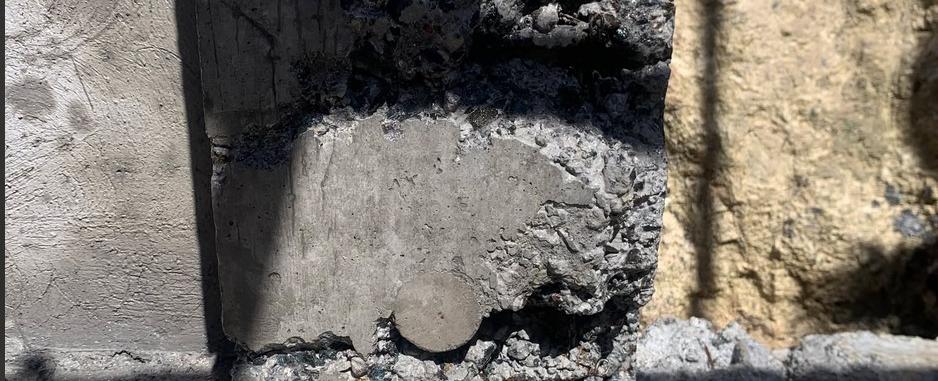

That’s the column we’re talking about. That’s not “rough finish.” That is concrete that didn’t consolidate properly around the rebar.

What Happened

Two things went wrong at once on this particular pour:

1. They placed too much concrete in one go. Tall column, big drop height, rapid placement. The mix segregated as it fell and the coarse aggregate piled up at the bottom while the cement paste headed elsewhere.
2. They didn’t vibrate it correctly. Either too few insertion points, too short a duration, or skipping zones that were hard to reach. End result: trapped air pockets and gaps where there should have been dense concrete.

When we stripped the formwork, the column had open voids you could fit your hand into, exposed coarse aggregate showing as a dark cratered surface, and stirrups visible through the gaps with rust already starting on them.

The red arrow in the photo points to where the cover concrete is essentially gone and the stirrups are sitting in air. That’s a structural problem, not a finishing problem.

The Cover-Up Attempt

Here’s the part that’s worth flagging for anyone supervising a build remotely.

The crew tried to patch it quickly with mortar before anyone could see it. A bit of cement-and-sand slurry smeared over the worst of it, troweled to look like a rough surface, and then they kept moving on the next column.

We caught it because:

• The daily site documenter was taking photos before, during, and after the column strip
• The “patch” had a different color and texture from the surrounding concrete
• The architect spotted it within hours during the daily review

If we’d been relying only on the contractor’s own status reports, we might have missed it until cracks or rust stains showed up years later. This is exactly why daily independent documentation is non-negotiable.

When we called it out, the answer was the usual: “small lang naman, sayang ang oras.” No. Honeycombing on a structural column is not cosmetic. The concrete is supposed to confine the rebar and transfer load. If half the section is honeycomb, the column is not the column on the drawings anymore.

How We Actually Caught It: The Architect in the Group Chat

This is exactly the moment the supervision setup paid for itself, so it’s worth showing how it played out.

We have a system that’s running every single working day on this build:

• We hired an independent person (not on the contractor’s payroll) whose only job is to walk the site daily, take photos and video of every active work area, and dump them into a shared messenger group.
• That group has me, my architect, and the contractor in it.
• My architect is not on site - he reviews from another location, asynchronously, every day, looking at the photos and videos as they come in.
• Anything that looks wrong gets flagged in the chat in real time, with the photo annotated, and the contractor sees it at the same time we do.

When the column got stripped, the daily video showed the honeycombed section. My architect spotted it from his desk and immediately posted in the group:

“I can see honeycombing in E9, E8” “And E8 seems have a wet corner, did they fix a problem there before you take the video sir?” “What happened here?”

Within minutes of the video being posted, the issue was flagged, the contractor was answering, and the cover-up patch attempt was off the table because everyone could already see what was underneath. No site visit required. No flying in. No waiting for the next inspection.

This is how we work, and so far it works really well for us:

• Independent eyes on site, every day
• Photos and video shared in real time
• Architect supervising remotely, asynchronously
• Contractor in the same chat so issues get addressed transparently
• Nothing important gets buried under fresh concrete or a quick mortar smear

If you’re building from abroad, or even just from another city, this setup is achievable on any budget. The independent documenter is cheap. The architect is going to bill you for review time anyway. The messenger group is free. The only thing it costs is the discipline of doing it every day.

A finger could literally break pieces off this. That’s how loose the matrix was. Definitely not something to bury under a quick mortar smear.

Why Honeycombing Is a Real Problem

Two big issues:

1. Loss of cover and confinement. The rebar is supposed to be embedded in dense concrete that protects it from corrosion and confines it under load. Voids around the rebar mean salt and moisture get in fast (especially on a coastal site) and the column behaves weaker than designed under earthquake loading.
2. Reduced cross-section strength. Honeycombed concrete has much lower compressive strength than the cylinder break suggests. The lab cylinder is from a perfectly placed and rodded sample. The actual column is whatever ended up in the form. They are not the same thing.

You can pick aggregate out of a honeycombed section by hand:

That’s not concrete. That’s separated aggregate held together by air. If it’s coming apart in your palm, it’s definitely not transferring structural load.

The Right Repair: Get a Sika Specialist On Site

We stopped any further patching and called in a Sika technical specialist to come out, look at the actual damage, and supervise the repair.

A proper concrete repair is not “spread some mortar and move on.” The procedure for a structural honeycomb repair is roughly:

1. Chip back all the unsound concrete until you reach solid, sound material. Use a chipping hammer or pneumatic chisel, not just a steel brush. Keep going until the surface rings hard when struck.
2. Expose and clean the rebar. Wire-brush any rust off the exposed stirrups and longitudinal bars. Confirm no significant section loss. Replace any bar that’s badly corroded.
3. Roughen the substrate to give the repair material something to grip. Saw-cut clean edges around the patch perimeter so you don’t end up with a feather-thin transition that will pop off.
4. Dampen the substrate to saturated-surface-dry condition. No standing water, but no dust either.
5. Apply a Sika bonding agent (e.g. SikaTop Armatec for the rebar primer and bonding, or equivalent from the Sika repair system) at the manufacturer’s specified film thickness, while it’s still tacky.
6. Place a proper Sika repair mortar (e.g. SikaRep or MonoTop), in the correct lift thickness, properly worked into all the corners and around the rebar, not just smeared on the surface.
7. Cure the patch. Wet curing for at least 7 days, longer in hot weather. Cover with damp burlap or curing compound.

That’s a real repair. It restores cover, restores bond, and you can document it. Done right, the patched section can develop close to the original design strength.

Why You Need the Specialist, Not Just the Product

The Sika system only works if it’s used correctly. The contractor’s first instinct was to buy a tub of bonding agent, paint it on, and trowel mortar over the surface. That doesn’t fix anything - it traps the void inside, and the patch eventually delaminates from the unsound concrete underneath.

The Sika rep on site:

• Checked the actual extent of the damage by sounding the surface with a hammer
• Specified the chipping depth to reach sound concrete
• Selected the correct primer and repair mortar from the system catalogue
• Verified surface preparation before the bonding agent went on
• Watched the application and called out lift thicknesses

This is normal in any commercial project. On residential builds it almost never happens unless the homeowner insists. Insist. Most major manufacturers (Sika, BASF/MasterBuilders, Mapei) will send a technical rep to a residential site if you ask, especially if you’re buying their repair products.

What I’d Tell Anyone Building

Lessons from this episode:

1. Honeycombing is not a finish defect, it’s a structural defect. Treat it that way.
2. The crew will try to hide it if they can. Quick mortar smear, paint it over, move on. If you don’t have daily independent documentation, you will miss this.
3. Photograph every column right after stripping. Multiple angles, in good light. Compare to other columns and look for color/texture mismatches.
4. Don’t accept a “we’ll just patch it” answer. Real repairs require chipping back to sound concrete, proper bonding agent, and a rated repair mortar. Anything less is cosmetic and will fail.
5. Call the manufacturer specialist. Sika, BASF, Mapei - they will come out for a structural repair. The product without the procedure is just expensive paste.
6. Address the root cause for the next pour. In our case: smaller lifts (max 600 mm at a time), lower drop height with a tremie or chute, vibration plan with insertion points marked on the rebar cage, dedicated vibrator operator who isn’t also doing other tasks.

We did all of those on the next column pour. Stripped clean, no honeycombing, no patches needed.

Bottom Line

Even with a good contractor, a properly designed mix, a night pour, and decent supervision, things go wrong. The difference between a build that ages well and one that doesn’t is what happens after something goes wrong.

A patched-and-hidden honeycomb is a future spalling failure waiting for the first earthquake or the first decade of salt air. A chipped-back, bonded, properly repaired section under a Sika spec is something you can sleep next to for 50 years.

Don’t let anyone smear mortar over a structural problem on your build. Stop the work, photograph it, escalate it, and get the right system on it.

If your contractor pushes back on bringing in a Sika or equivalent specialist for a structural repair, that itself is the answer to whether you can trust the repair. Push harder.
