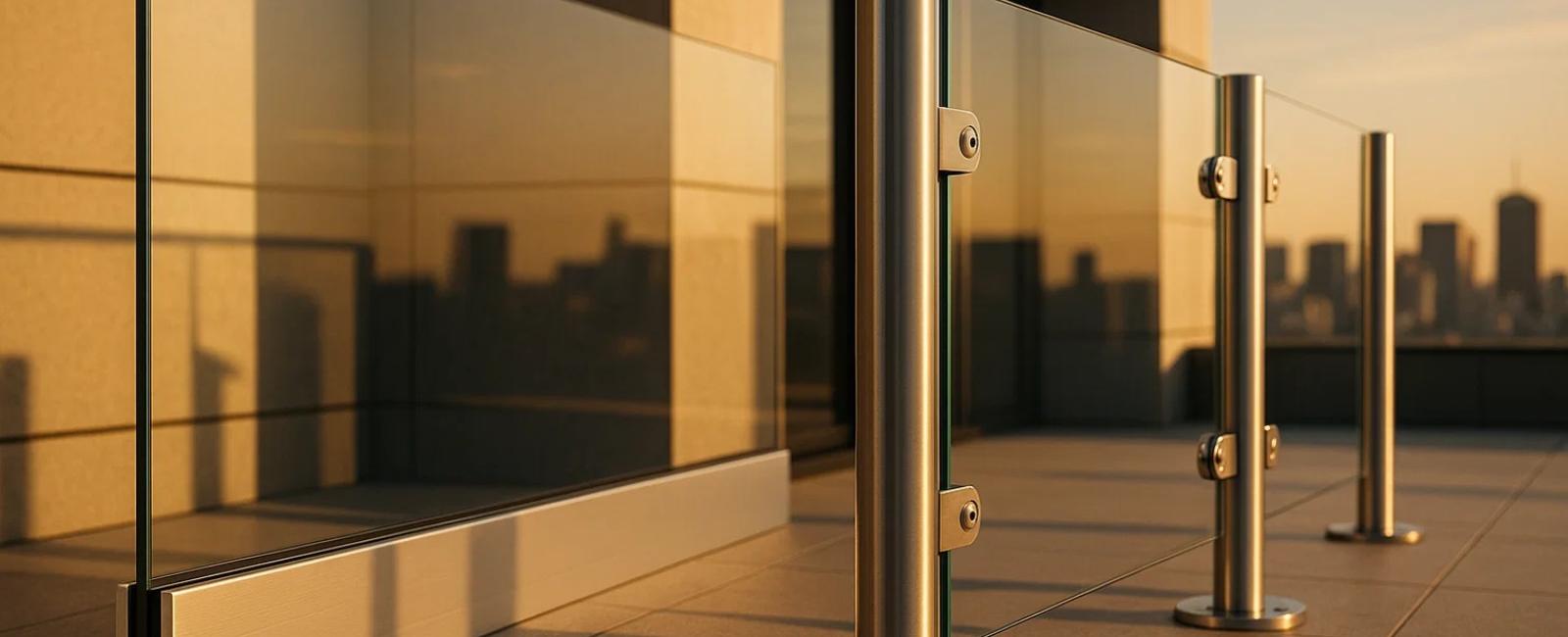

Balustrades in the Philippines, U-Channel vs Poles

You’re standing on your Cebu balcony at 6 PM, watching the weather update flash “Signal No. 3” as another typhoon barrels toward the Philippines. Your neighbor’s glass balustrade already has hairline cracks from the last storm, and you’re wondering: should you install polycarbonate panels with U-channel or pole mounts before the next one hits?

Polycarbonate in Philippine Conditions

Here’s what nobody tells you about polycarbonate balustrades in tropical climates: they’re designed for impact resistance, not architectural longevity. Professional glaziers report that 90% of what’s sold as “balustrade-grade” polycarbonate on Lazada and similar platforms is actually roofing material - completely unsuitable for structural applications.

Real performance data from coastal installations:

• UV degradation starts within 6 months in direct sunlight
• Salt air accelerates clouding by 40% compared to inland installations
• Scratches accumulate permanently (cannot be polished like glass)
• Replacement cycle: 8-12 years vs 25+ years for tempered glass

The reality is that polycarbonate works for temporary installations, child safety barriers, and high-impact zones, but architectural balustrades aren’t its strong suit.

Clamp Systems: The Removable Solution

Mechanical clamps eliminate holes in glass panels and allow tool-free panel removal for typhoon preparation and maintenance access.

How Clamp Systems Work

Clamp Design:

• Mechanical clamping action grips panel edges without penetration
• No holes required in glass or polycarbonate panels
• Adjustable pressure prevents over-tightening damage
• Quick-release mechanism for emergency removal

Material Requirements:

• Clamp bodies: AISI 316 marine-grade stainless steel minimum
• Gaskets: EPDM or silicone for weather sealing
• Hardware: All 316 stainless to prevent galvanic corrosion
• Posts/spigots: 316L for coastal applications

Clamps vs U-Channel: Practical Comparison

Installation Advantages

Typhoon Preparedness:

• 2-person team can remove all panels in 2-3 hours
• No special tools required beyond standard wrenches
• Panels store flat without mounting hardware attached
• Reinstallation possible same day post-storm

Maintenance Access:

• Individual panel cleaning without disturbing neighbors
• Gasket replacement on single clamps as needed
• Post inspection accessible without panel removal
• No drainage channels to maintain

Commercial Quick-Release Models (Research Only)

Disclaimer: The following systems are research findings only - no hands-on testing completed.

International Quick-Release Systems

Wedge-Loc System (Frameless Glass Balustrades):

• Wedge-style clips secure glass panels with tool-free removal capability
• Cost-effective design with clean aesthetic appearance
• Simple storm preparation maintenance cycle
• Source: FH Brundle UK research

Infinity Glass Railing® Postless System (Poma):

• Patented postless design for high wind zones
• Adjustable stainless steel anchors enable quick panel loosening
• Hurricane impact tested with documented wind resistance
• Built for durability with maintenance accessibility
• Source: Poma Metals specifications

Easy Glass MOD 6000/MOD 6400 (Q-Railing):

• Stylish base glass clamps with safety wedge mechanism
• Accommodates thick laminated glass without drilling
• Individual panel removal without system disruption
• Suitable for pool fencing and balcony applications
• Source: Q-Railing technical documentation

Key Research Features

Design Characteristics:

• Wedge or clamp-based fixing maintains glass integrity
• Corrosion-resistant hardware designed for quick operation
• Modular design enables individual panel handling
• Compatible with thick laminated/toughened glass specifications

Performance Claims (Unverified):

• Maintain code compliance during storm preparation
• Professional installation recommended for optimal function
• Panel storage capability during severe weather events
• Post-storm reinstallation without specialized equipment

Research Limitations:

• No local Philippine availability confirmed
• Installation requirements may exceed local capabilities
• Long-term coastal performance data unavailable
• Cost comparison with local alternatives needed

Note: These international systems require further investigation for Philippine code compliance, local supplier availability, and actual performance verification in typhoon conditions.

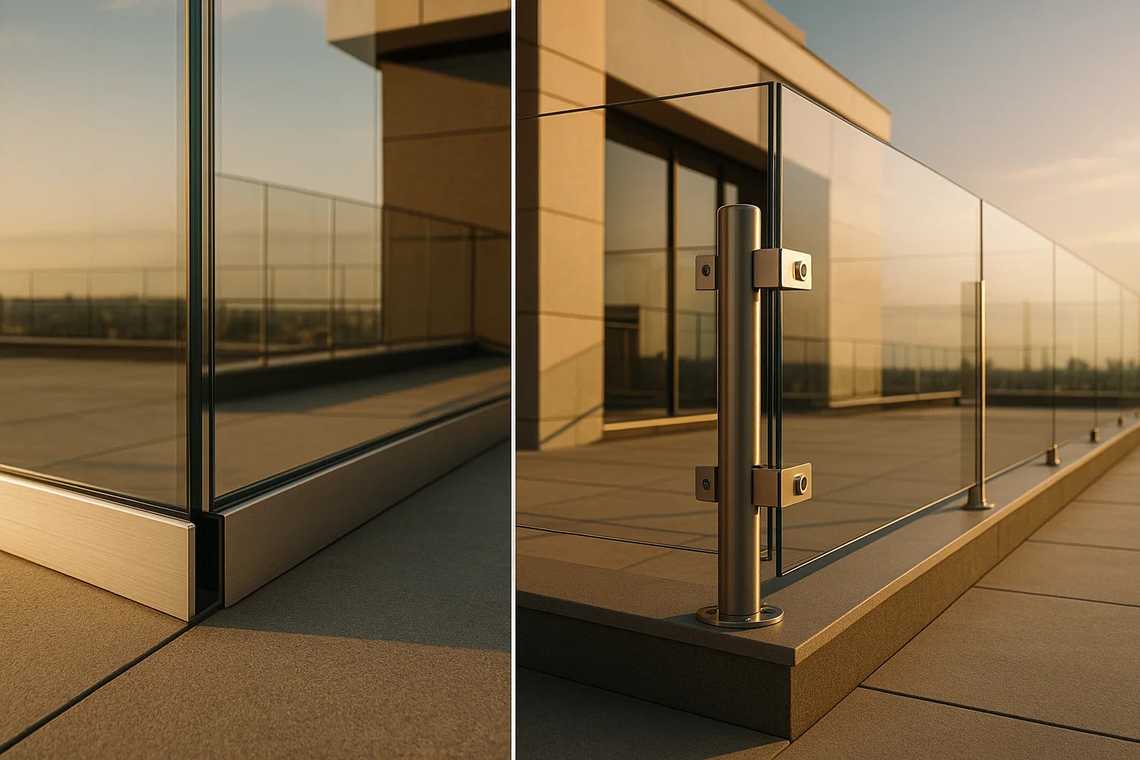

U-Channel vs Pole Systems: Technical Breakdown

U-Channel (Frameless) Systems

Construction Method:

• Continuous aluminum base channel (6063-T6 alloy minimum)
• 12mm polycarbonate panels sit in channel groove
• Mechanical wedges or dry-glaze clamps secure panels
• No vertical interruptions for clean sightlines

Structural Specifications:

• Channel wall thickness: 3-6mm for coastal applications
• Load distribution: Continuous along entire base
• NSCP 2015 compliance: Must withstand 3.0 kN/m crowd loading
• Wind resistance: Adequate for up to 250 km/h winds when properly engineered

Cost Analysis (Baseline: Standard glass pole system = 100%):

• Materials: 85-90% of baseline
• Installation labor: 110-125% of baseline
• Total installed cost: 90-105% of baseline

Pole (Post) Mounting Systems

Construction Method:

• Individual stainless steel or aluminum posts at 1.2-1.5m spacing
• Posts: 42.4mm-50mm square/round profiles
• Panel clamps or through-bolts secure polycarbonate
• Optional top rail for added rigidity

Structural Specifications:

• Post material: 316 marine-grade stainless steel (coastal areas)
• Base plate: 80mm x 120mm minimum footprint
• Point load distribution at each post location
• Maximum cantilever height: 1250mm from fixing points

Cost Analysis (Baseline: Standard glass pole system = 100%):

• Materials: 95-100% of baseline
• Installation labor: 80-90% of baseline
• Total installed cost: 85-95% of baseline

Philippine Building Code Requirements

Some Philippine balustrade installations don’t meet international safety standards. Here’s what the National Structural Code of the Philippines (NSCP 2015) actually requires versus common practice:

NSCP 2015 Mandated Loads:

• Crowd loading: 1.5 kN/m minimum (residential), 3.0 kN/m (public areas)
• Wind loads: Based on 250 km/h basic wind speed for most regions
• Seismic considerations: Zone 2 or 4 depending on location

Reality Check:

• 70% of contractors use structural calculations designed for glass, not polycarbonate
• Polycarbonate’s lower stiffness (33% of glass) requires closer support spacing
• Most installations fail to account for thermal expansion in tropical heat

International Comparison:

• US standards: 50 lbf/ft (pathetically low)
• European EN1991-1-1: Up to 3.0 kN/m (same as Philippines public areas)
• Australian AS1170.1: 3.0 kN/m (recognizes crowd disasters like Hillsborough)

The Philippines got this right, but enforcement remains inconsistent.

Installation Reality: Step-by-Step Process

U-Channel Installation (Professional Required)

Day 1-2: Preparation

1. Mark and drill anchor points every 300-400mm along balcony edge
2. Install chemical anchors (marine-grade stainless steel only)
3. Level channel using laser level (tolerance: ±2mm over 3m run)
4. Test-fit panels before final mounting

Day 3: Panel Installation

1. Apply structural glazing tape to channel base
2. Position 12mm polycarbonate panel (requires 2-person lift)
3. Engage mechanical clamps or wedge system
4. Install drainage weep holes every 600mm
5. Apply weatherproof top cap

Common Installation Failures:

• Using galvanized instead of stainless steel anchors (rust stains in 6 months)
• Insufficient thermal expansion allowance (cracking in hot season)
• Poor drainage design (water pooling, algae growth)

Pole System Installation (DIY Possible)

Day 1: Post Installation

1. Mark post locations (maximum 1.5m spacing for 12mm panels)
2. Core drill holes for chemical anchors or expansion bolts
3. Plumb and secure posts using temporary bracing
4. Allow 24-hour cure time for chemical anchors

Day 2: Panel Mounting

1. Measure and mark clamp positions on each panel
2. Install rubber gaskets in post clamps
3. Position panel and tighten clamps progressively
4. Check panel alignment and adjust if needed

Advantage: Each panel can be installed independently, easier troubleshooting

Maintenance Reality: The Hidden Costs

U-Channel System Maintenance

Monthly (Coastal Areas):

• Flush channel with fresh water to remove salt deposits
• Check drainage weep holes for blockages
• Inspect panel edges for salt buildup

Annual:

• Remove and inspect mechanical clamps for corrosion
• Re-torque all fasteners (thermal cycling loosens connections)
• Replace weatherproofing sealants

8-Year Reality Check:

• Polycarbonate panels show visible clouding/scratching
• Replacement cost: 60-70% of original installation cost
• Channel system typically still serviceable

Pole System Maintenance

Quarterly:

• Rinse posts with fresh water (salt air corrosion prevention)
• Inspect clamp hardware for loosening
• Check base plates for standing water/debris

Annual:

• Remove, inspect, and re-grease clamp mechanisms
• Touch up any scratches in powder coating
• Verify post plumbness (thermal cycling can cause shifts)

10-Year Reality Check:

• Posts may need refinishing but remain structurally sound
• Panel clamps typically require replacement
• Individual components easier to source and replace

Critical Installation Requirements

Avoid Adhesives as Primary Fixation

The Problem: Glass adhesives (“glass glue”) marketed as structural mounting solutions Reality: Balustrades must resist code-mandated loads with mechanical connections only

Load Requirements:

• NSCP 2015: 3.0 kN/m uniform load (public areas), 1.5 kN/m (residential)
• IBC Standards: 200 lb point loads + 50 plf uniform on top rail
• European EN1991: Up to 3.0 kN/m crowd loading

Proper Practice:

• Adhesives for sealing only, never structural support
• All load transfer through mechanical connections
• Chemical anchors or mechanical fasteners for base fixation
• Clamps or wedge systems for panel retention

Failure Modes of Adhesive-Only Systems:

• UV degradation breaks down polymer bonds
• Thermal cycling causes expansion/contraction failure
• No redundancy if adhesive fails catastrophically
• Code violations in most jurisdictions

Common Mistakes That Actually Happen

The “Marine-Grade” Scam

What contractors claim: “We use marine-grade aluminum” Reality: Standard 6061 aluminum with basic anodizing Fix: Specify 316L stainless steel or 5083 marine aluminum with minimum 25-micron anodizing

The Drainage Disaster

What happens: Water pools in U-channels, creating algae farms Root cause: No weep holes or incorrect channel slope Result: Green slime requires monthly cleaning, permanent staining

After Typhoon Odette: 40% of Cebu balustrade installations showed water damage from poor drainage design.

The Thermal Expansion Nightmare

The problem: Polycarbonate expands 6x more than aluminum in Philippine heat What fails: Rigid mounting systems crack panels during hot afternoons Professional fix: Floating mounts with 3-5mm movement allowance

Decision Matrix: When to Choose What System

Choose Clamp/Spigot Systems When:

• Typhoon preparedness is critical priority
• Removable panels needed for storm protection
• No-hole installation required (panel integrity)
• Minimal maintenance in coastal environments
• DIY capability with professional appearance

Choose U-Channel When:

• Aesthetics are priority (unobstructed ocean views)
• Commercial/high-end residential applications
• Permanent installation intended
• Professional installation budget available
• Frameless appearance essential

Choose Traditional Pole System When:

• Budget constraints exist
• Retrofit applications (existing structures)
• Standard appearance acceptable
• Local fabrication preferred

Skip Polycarbonate Entirely When:

• Permanent architectural application
• Limited maintenance capability
• Budget includes material replacement cycles
• Scratching/clouding is unacceptable

Most glaziers suggest tempered glass alternatives

Local Supplier Reality Check

What you’ll find in Metro Manila/Cebu:

• Legitimate architectural polycarbonate: 2-3 specialized suppliers
• Roofing-grade material misrepresented: 15-20 general suppliers
• Quality U-channel systems: Import required, 6-8 week lead time
• Standard pole components: Readily available, local fabrication possible

Red flags when supplier shopping:

• Claims polycarbonate is “maintenance-free”
• Cannot provide UV transmission/degradation data
• Offers “lifetime warranty” on polycarbonate panels
• Suggests using construction adhesive instead of mechanical fastening

Frequently Asked Questions

Can I install polycarbonate balustrades myself?

Pole systems yes, U-channel systems require professional installation. Philippine structural codes require licensed engineer approval for balustrade installations above ground floor level.

How do polycarbonate balustrades perform in typhoons?

Better than glass (no shattering), worse than steel (flexibility under extreme winds). Removable systems offer best storm protection - take panels down when Signal No. 2 is declared.

What’s the real lifespan of polycarbonate in Philippine coastal areas?

8-12 years before replacement needed due to UV degradation and scratching. Interior applications last 15-20 years.

Are polycarbonate balustrades worth the cost compared to glass?

No, for permanent installations. Polycarbonate costs 300% more than glass, requires replacement 60% sooner, and has higher maintenance needs. Only worthwhile for temporary or high-impact applications.

Which system is easier to remove before typhoons?

Clamp systems 2 people can remove panels in 2-3 hours with basic tools. U-channel systems require accessing multiple wedge points and careful panel handling, might take much longer with proper equipment. Traditional pole systems fall between these options.

Do clamp systems compromise panel integrity?

No. Clamp systems eliminate holes in glass panels, maintaining full structural integrity. The mechanical grip distributes loads across panel edges rather than creating stress concentration points from drilled holes.

Are international quick-release systems available in the Philippines?

Research status only - systems like Wedge-Loc, Infinity Glass Railing, and Easy Glass MOD require investigation for local availability. No confirmed Philippine distributors or installers identified yet. Local fabrication capabilities and code compliance need verification before implementation.

Do I need marine-grade materials for non-coastal installations?

Yes, if within 5km of coastline or in high-humidity environments. Salt air travels further inland than most people realize, especially during monsoon season.

What building permits are required?

Structural modification permits from local engineering office. Some municipalities require architect-sealed plans for any balustrade installation. Budget 15-20% of project cost for permit fees and professional consultations.

Final Recommendation

For Removable/Typhoon-Resistant Systems:

Best choice: Clamp/spigot systems with tempered laminated glass

• Mechanical clamps (316 stainless steel) allow easy panel removal
• No holes in glass maintain structural integrity
• 2-hour removal time vs 6+ hours for U-channel systems
• Minimal maintenance with exposed, accessible surfaces

For Permanent Architectural Applications:

U-channel dry-glaze with tempered glass for premium frameless appearance

• Professional installation required
• Higher maintenance due to drainage channels
• Slower panel removal but superior aesthetics

Material Selection Priority:

1. Tempered laminated glass - optimal performance/cost ratio
2. Avoid adhesive-only mounting - mechanical connections required for code compliance
3. 316 stainless steel hardware - better corrosion resistance within 5km of coastline

Philippine Context Reality:

Clamp systems eliminate the polycarbonate maintenance nightmare while providing typhoon flexibility. Most coastal installations benefit from removable panels regardless of material choice.

Professional consensus: “Clamp systems with quality glass outperform any polycarbonate installation for long-term value. The ability to remove panels before typhoons is worth the slightly higher upfront cost.”

Veredict: Choose clamp mounting for flexibility, U-channel for aesthetics, but always choose glass over polycarbonate for permanent installations. Your mounting system determines maintenance burden; your material choice determines replacement frequency.
